RightMark Audio Analyzer test report

Testing device RME Fireface 400
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.3.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.4 dB / -0.4 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.06, -0.03
Excellent
Noise level, dB (A)
-109.1
Excellent
Dynamic range, dB (A)
109.0
Excellent
THD, %
0.0035
Very good
THD + Noise, dB (A)
-86.4
Good
IMD + Noise, %
0.0035
Excellent
Stereo crosstalk, dB
-107.8
Excellent
IMD at 10 kHz, %
0.0034
Excellent
General performance

Very good

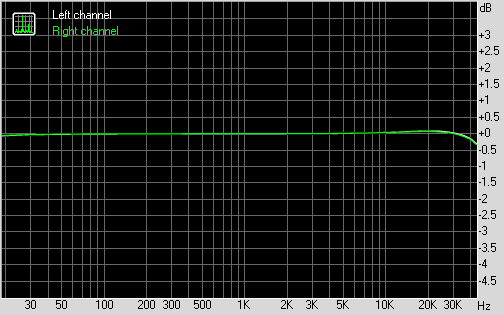

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.06, +0.08
-0.05, +0.07
From 40 Hz to 15 kHz, dB
-0.03, +0.06
-0.02, +0.06

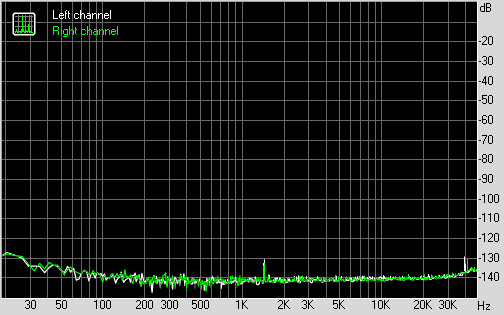

Noise level

Spectrum graph


Left
Right
RMS power, dB
-107.8
-107.8
RMS power (A-weighted), dB
-109.0
-109.1
Peak level, dB FS
-80.2
-80.2
DC offset, %
-0.0
-0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+107.9
+107.9
Dynamic range (A-weighted), dB
+109.0
+109.1
DC offset, %
+0.00
+0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0035
+0.0035
THD + Noise, %
+0.0036
+0.0036
THD + Noise (A-weighted), %
+0.0048
+0.0048

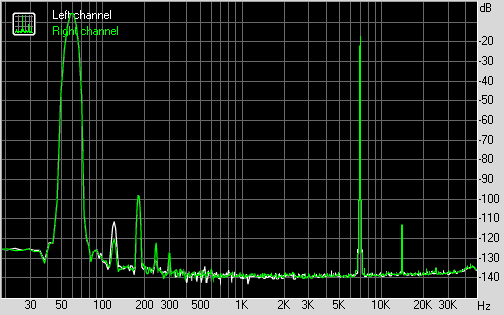

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0035
+0.0035
IMD + Noise (A-weighted), %
+0.0027
+0.0026



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-104
-102
Crosstalk at 1000 Hz, dB
-107
-107
Crosstalk at 10000 Hz, dB
-103
-104



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0041
0.0041
IMD + Noise at 10000 Hz,
0.0030
0.0030
IMD + Noise at 15000 Hz,
0.0031
0.0030
